Dataraptor Post Action

Downloads

GitHub: Dataraptor Post Action json

Steps

Step 1. Create a Load Dataraptor

Step 2. Create Omniscript

Step 1. Create a Load Dataraptor

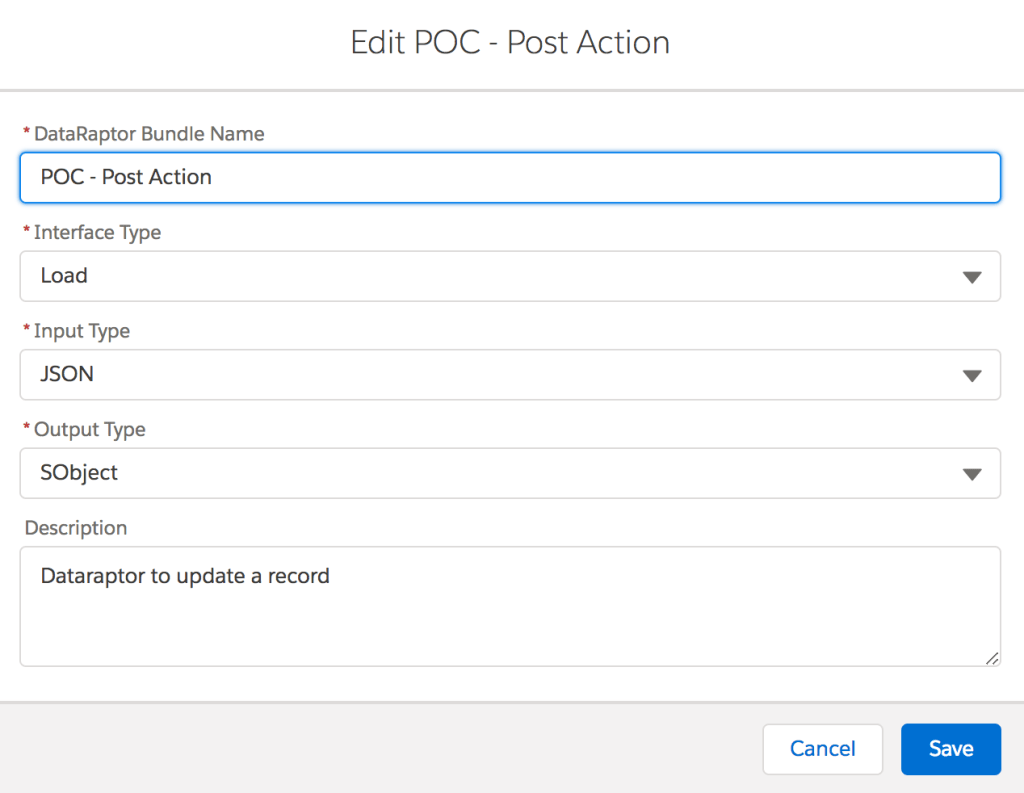

Open ‘Vlocity DataRaptor Designer’ tab and click on ‘New’ button. Fill the fields with the following values (the ‘Interface Type’ must be ‘Load’) and click on ‘Save’.

Screen Shot 2018-08-20 at 18.42.36

Click on the ‘Objects’ tab and add an ‘Account’ object.

Screen Shot 2018-07-11 at 17.43.44

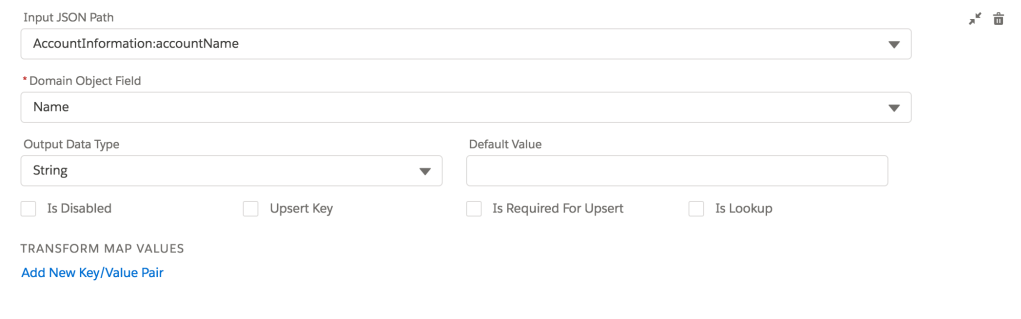

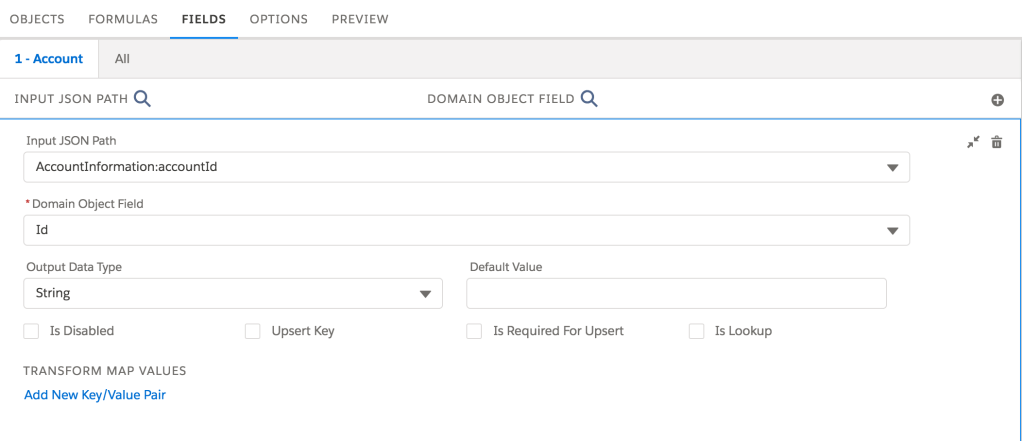

Click on ‘Fields’ tab and set the account id and the name fields. Set the beginning of the input name as ‘AccountInformation:’ because this Dataraptor will map the information from the Omniscript. It uses ‘AccountInformation:accountId’ to define which account will be updated.

Screen Shot 2018-07-11 at 18.29.39

Screen Shot 2018-07-11 at 18.33.29

Step 2. Create Omniscript

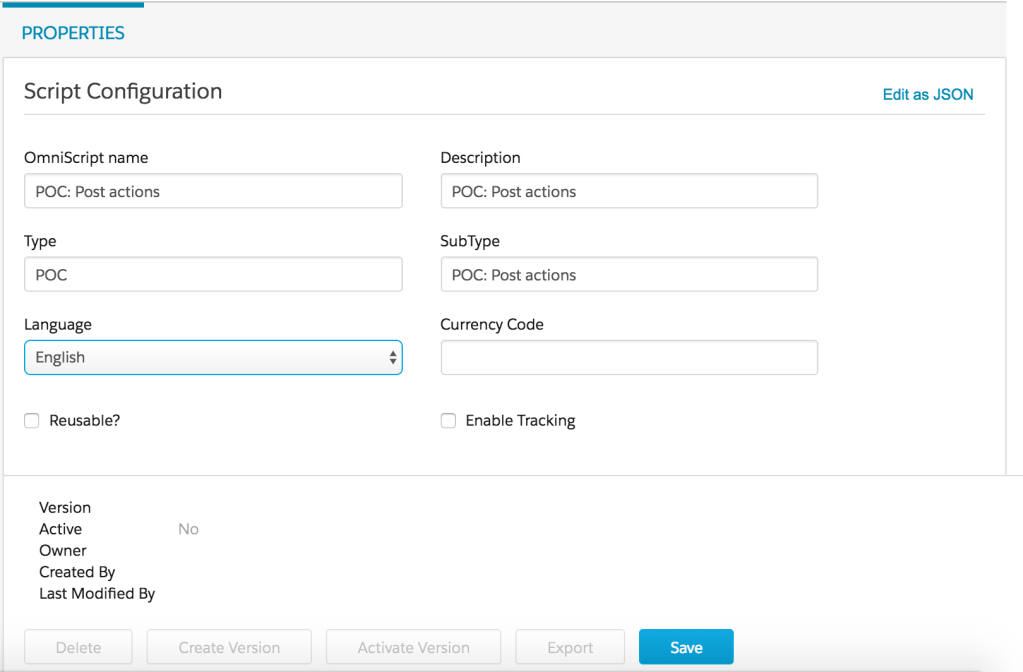

Open ‘Vlocity OmniScript Designer’ tab and click on ‘New’ button. Fill the fields with the following values and click on ‘Save’.

Screen Shot 2018-07-11 at 17.54.27

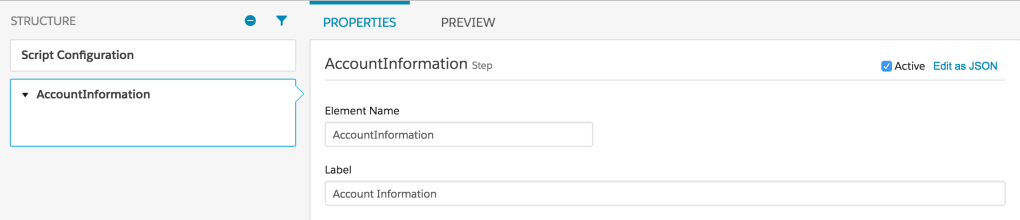

Drag and drop a ‘Step’ group. Set its element name as ‘AccountInformation’.

Screen Shot 2018-07-11 at 18.10.29

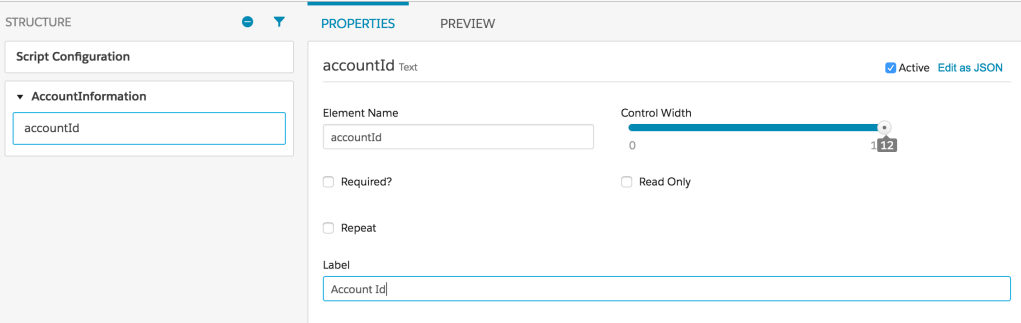

Drag and drop a ‘Text’ input. Set its element name as ‘accountId’.

Screen Shot 2018-07-11 at 18.12.03 (1)

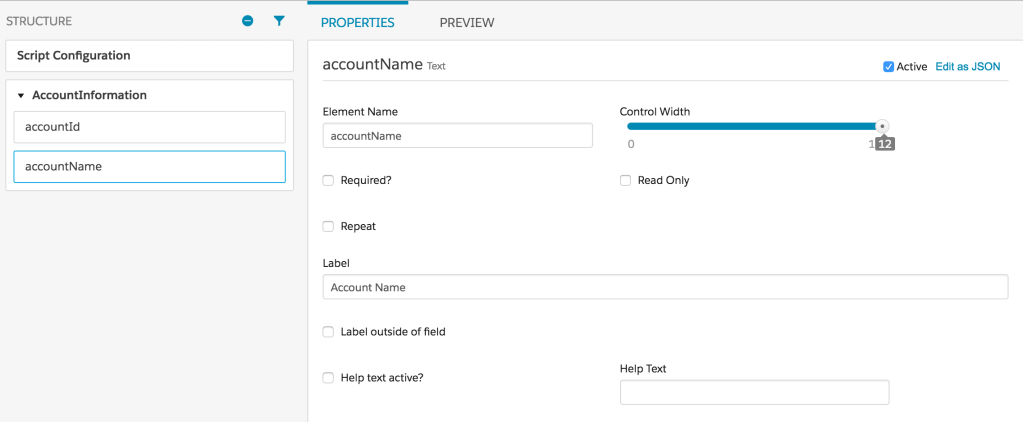

Drag and drop a ‘Text’ input. Set its label name as ‘accountName’.

Screen Shot 2018-07-11 at 18.13.36

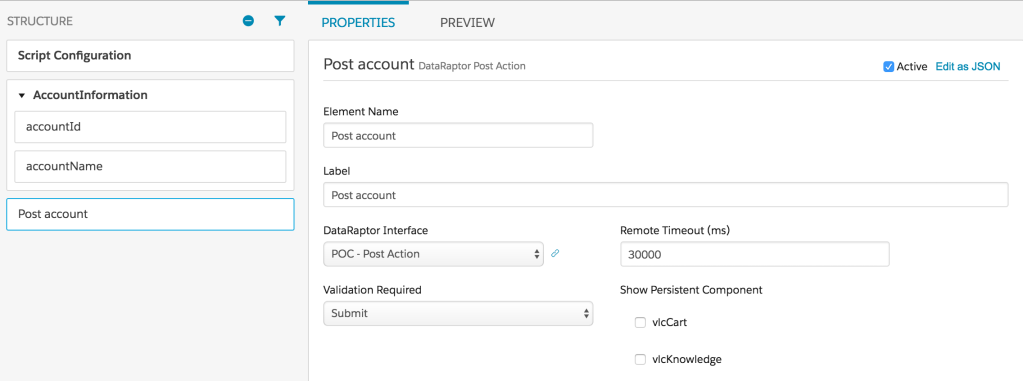

Drag and drop a ‘DataRaptor Post Action’ action. Set ‘DataRaptor Interface’ field as ‘POC: Post Action’.

Screen Shot 2018-07-11 at 18.17.14

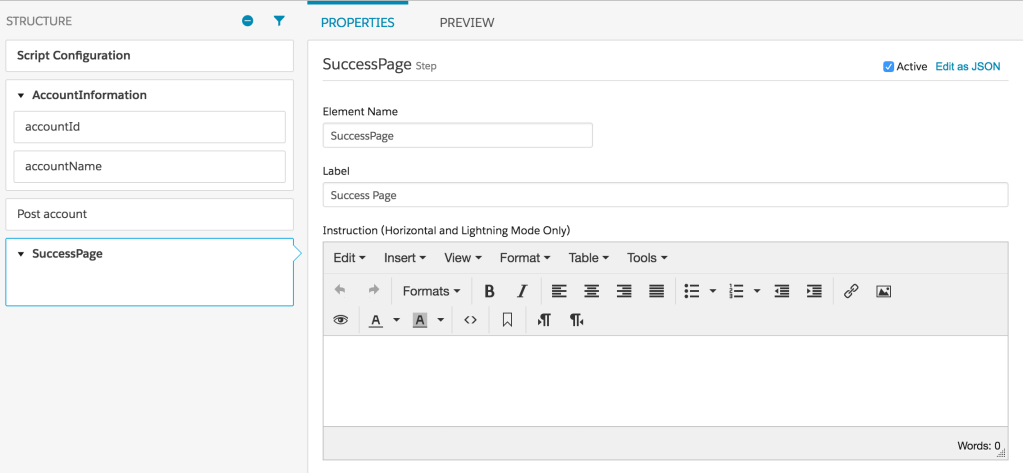

Create a success page. Drag and drop a ‘Step’ group and set its element name as ‘SuccessPage’.

Screen Shot 2018-07-11 at 18.20.35

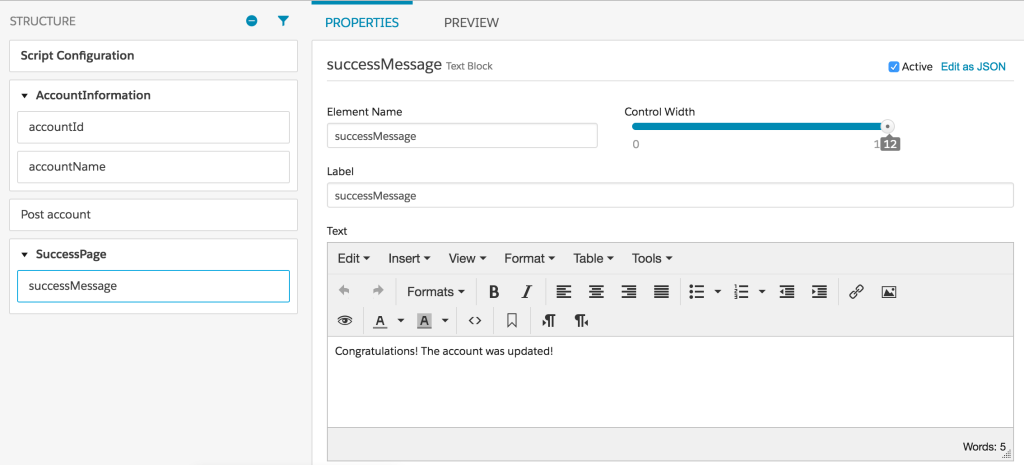

Drag and drop a ‘Text Block’ element and set the message as ‘Congratulations! The account was updated!’.

Screen Shot 2018-08-15 at 18.30.12

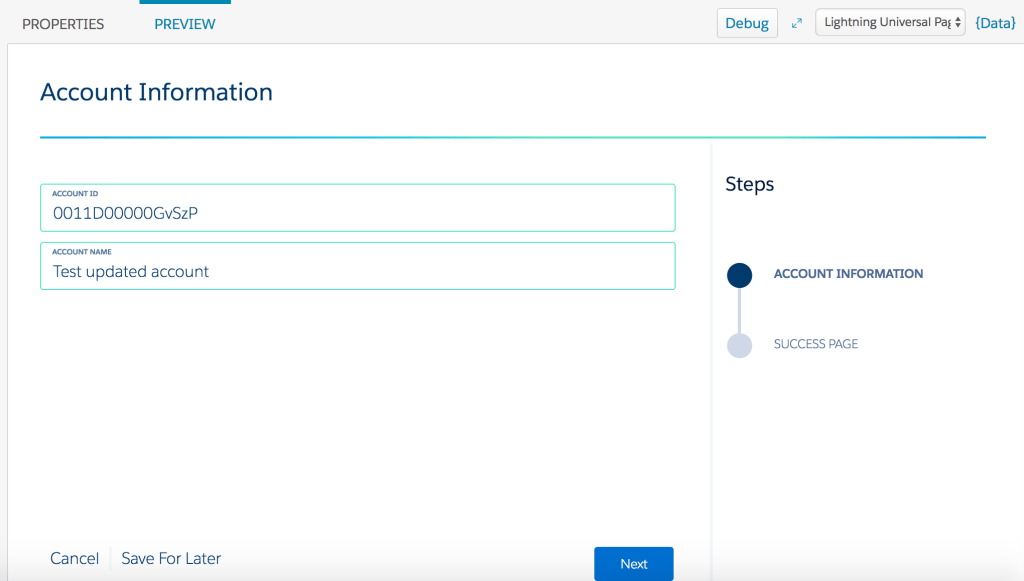

Now it is ready to test. Click on ‘Preview’ tab, fill the ‘Account Id’ with the account id record which you will update and set the new account name (for example: Test updated account). Click on ‘Next’.

Screen Shot 2018-07-11 at 18.38.47

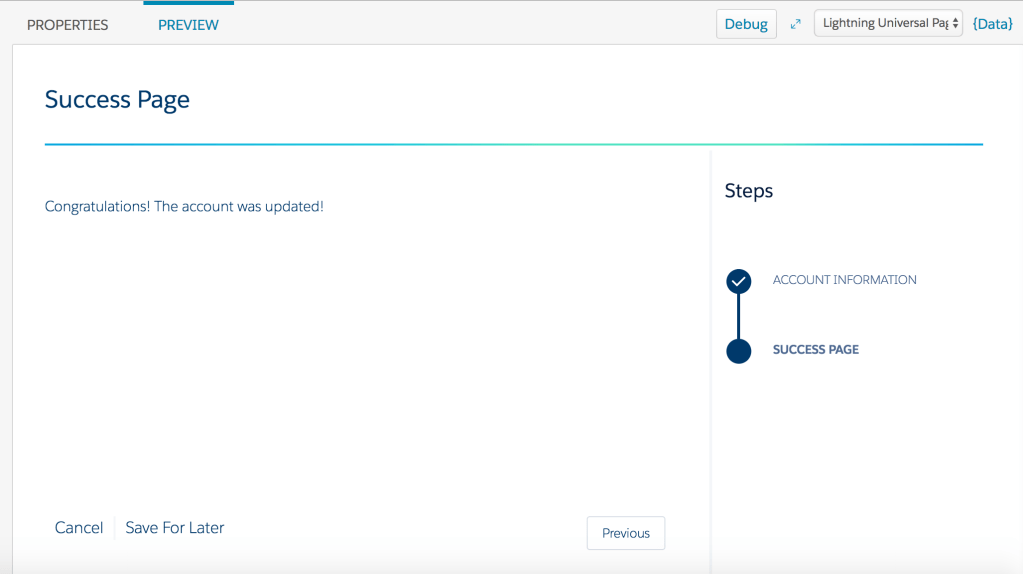

You will be redirected to the success page.

Screen Shot 2018-07-11 at 18.39.52

If you review your account record, its name will have been updated.
